About this product
Belltech has extended its Lift Kit product line to include Suspension Lift Kit Systems for the 2015–2020 Ford F-150. Engineered in the US, this suspension lift kit system is designed to deliver the best ride quality on the market. It is the only 7" lift kit that is adjustable and does not require rack correction, thanks to an innovative, progressive steering stop that prevents lower control arm interference with the coil spring at full lock and full droop.

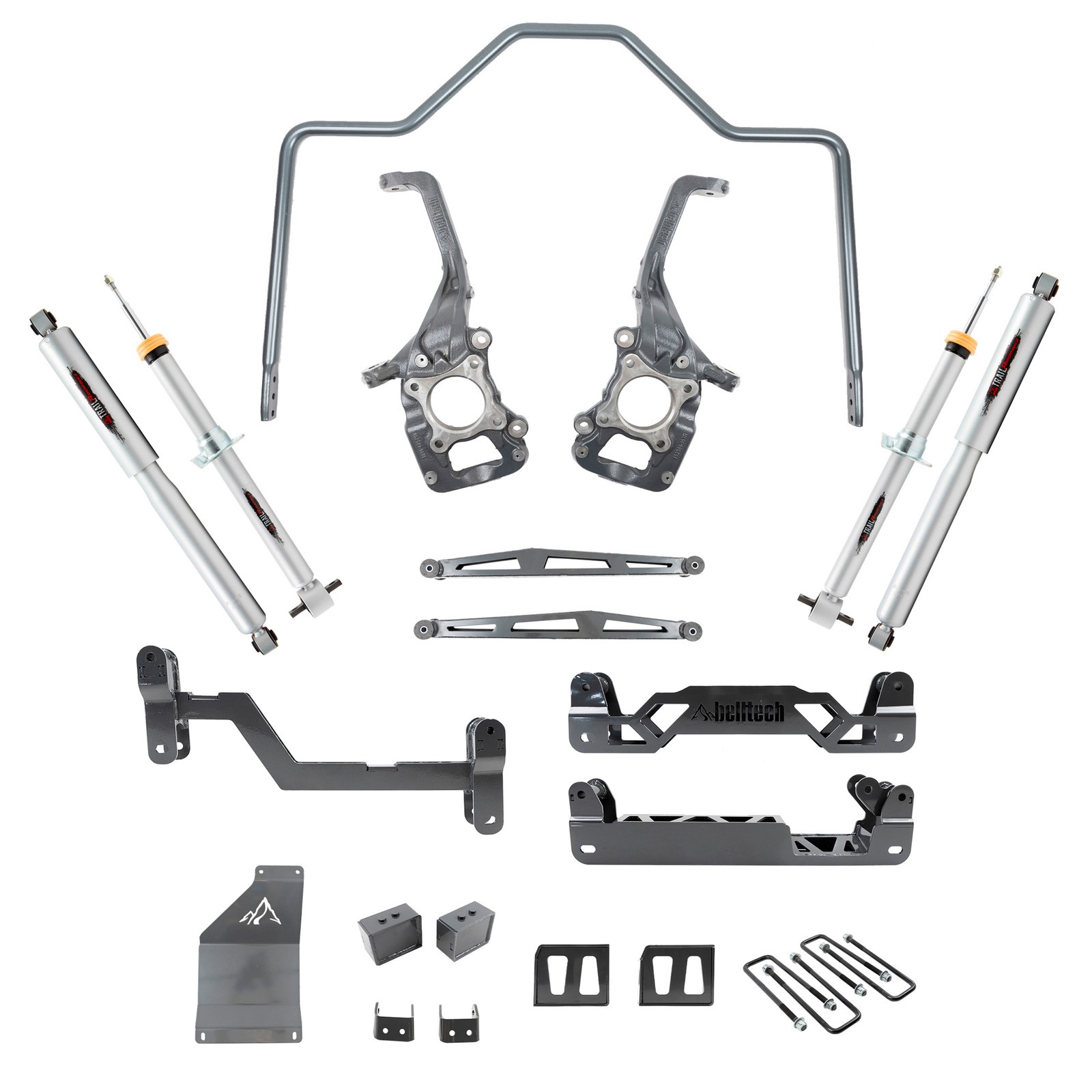

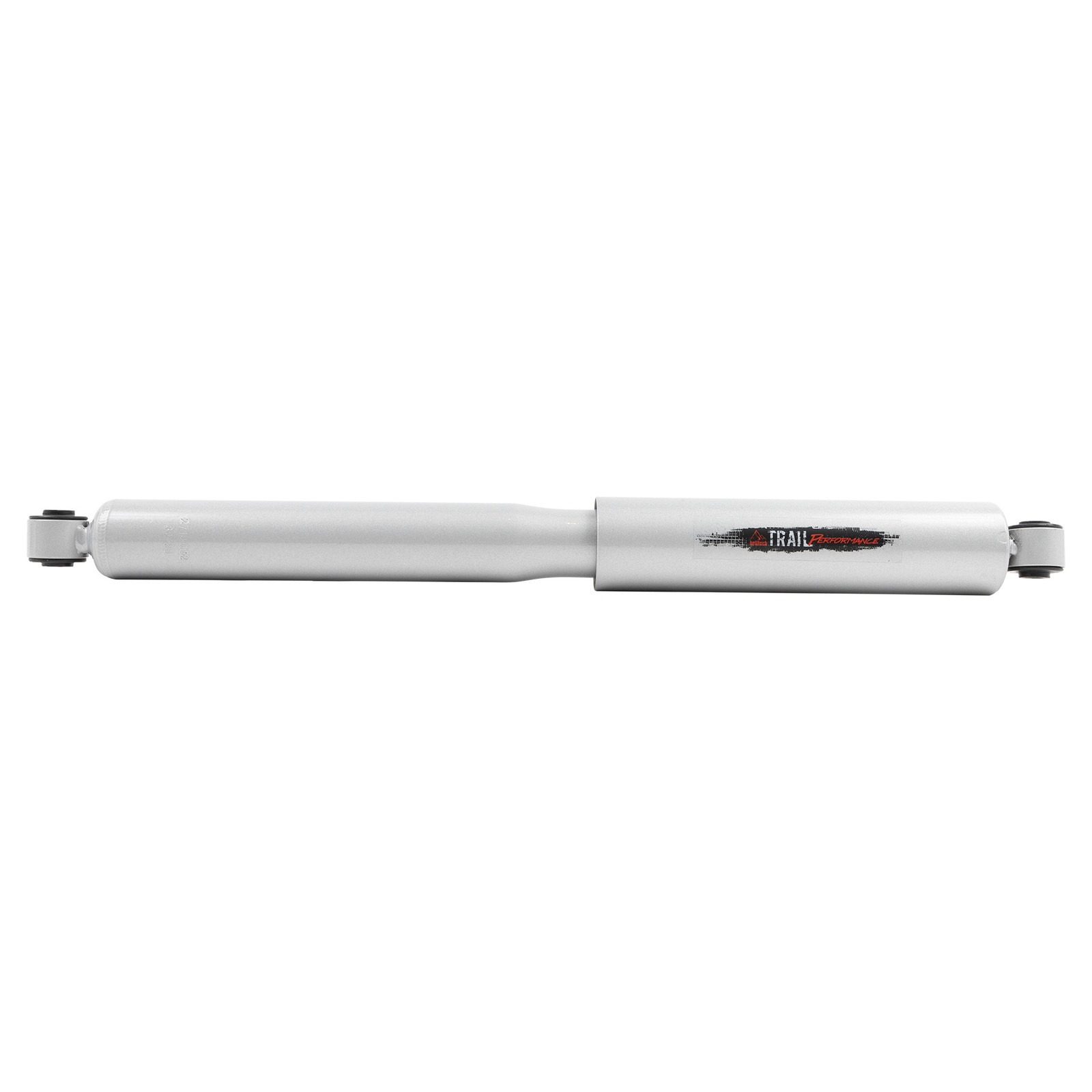

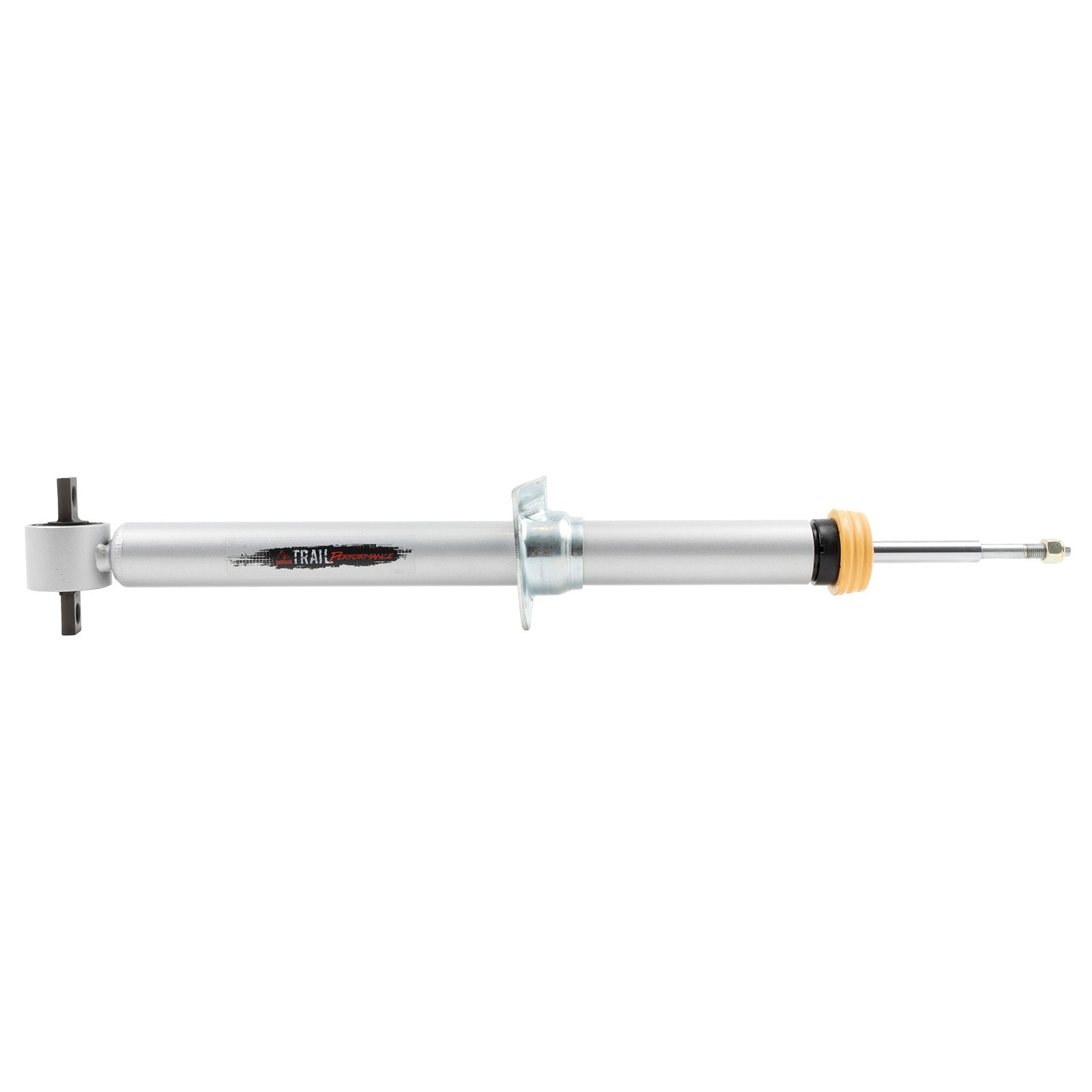

Belltech's precisely engineered lift kits include patented front, height-changeable, Trail Performance adjustable struts, and rear Trail Performance twin tube shocks. The front adjustable Trail Performance struts are modifiable in ½" increments allowing you to dial in the perfect ride height. These lift kits not only improve ride quality but also retain factory alignment adjustability and specifications, retain the factory track width, and most importantly, do not induce bump steer.
The replacement spindles are engineered to improve strength and reduce weight while enhancing durability, and they maintain the factory steering angle to avoid restricting the turning radius. The kit includes a ¼" thick laser-cut skid plate to protect the front differential when tackling off-road terrain. Belltech spindles keep the ball joint angles within spec, so no replacement ball joints are needed. Also included are a one-piece differential drop down bracket that maintains proper driveline and axle angles, ¼" thick high-clearance cross-members, and a billet aluminium driveshaft spacer.
In the rear, lift blocks and longer, heavy-duty U-bolts level the truck's stance, recenter the wheel in the wheel well and change the pinion angle to help prevent driveshaft vibrations. Belltech twin-tube custom-tuned shocks complete the suspension system. Belltech Lift Kits also include Compression Arms to increase chassis rigidity, improving ride quality and handling, plus rear bump stop spacers, rear brake line relocation brackets, and high-quality hardware.
Another great benefit of Belltech Lift Kits is that they are an easy to install, direct bolt-on solution that requires minimal cutting and no welding. The kits feature a Limited Lifetime Warranty.
Tyre & Wheel Combinations
- 35x12.50 with 18x9 or 20x9 and 4.5–5" backspacing
- 37x12.50 with 20x9 and 5.5–5.75" backspacing
- 35x12.50 with 20x9 and 4.5–5.75" backspacing
- Includes custom engineered front height adjustable Trail Performance struts and rear Trail Performance twin tube shocks
- Height adjustable for maximum customisation – no strut spacers needed
- 1" solid rear sway bar
- One-piece differential drop down bracket
- Maintains OE front differential geometry
- Retains OEM CV angles
- Maintains factory turning radius
- Precision designed and engineered in the USA
