About this product

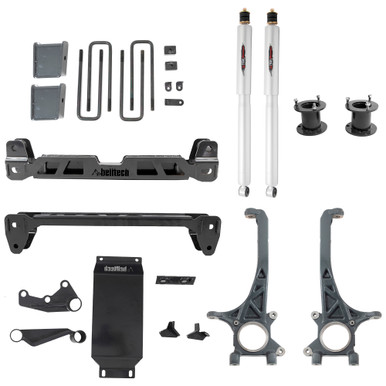

Durability, longevity and versatility all come to mind when thinking of a Toyota Tacoma. Belltech mirrors these quality characteristics in our 3rd generation Toyota Tacoma 4WD complete lift kit. We have created a solution that takes your truck to entirely new levels of functionality and performance.
The front end utilises a successful grouping of components. Two Belltech heavy‑duty 4" powder‑coated steel strut spacers add clearance and create room for larger tyres and wheels. Another successful component pairing is our Belltech lift spindles, which are made of ductile iron and powder‑coated to increase longevity. Belltech lift spindles are purposely designed to reduce weight, increase strength and keep proper ball joint angles. By keeping ideal ball‑joint angles, we maintain factory geometry. Our kit also retains your vehicle’s factory turning radius and does not increase track width. Also included in the front end are Belltech high‑clearance crossmembers constructed of ¼" thick steel. Our crossmembers are made to be immensely rigid. They bring down the control arms to maintain factory suspension geometry and integrate a mounting point for the differential. Connecting the crossmember to the differential are our diff drop‑down brackets, which mimic OE alignment. Our kit makes it easy to reuse your OE skid plate but adds a lower ¼" thick skid plate to protect the differential. A steering stop bracket is used to prevent over‑extension of the steering rack, and sway bar relocation brackets reposition your OE sway bars to keep proper alignment.
At the rear, Belltech improves ride quality with Trail Performance Twin Tube Shocks that feature preset, low‑friction dampers precisely tuned for the Tacoma, and that do not lose damping forces over time or under stress. The dampers have large, 55mm bodies and 35mm independent rebound and compression valves, which result in finely tuned low‑ and high‑speed damping. Heavy‑duty powder‑coated 4" steel lift blocks and extended‑length U‑bolts add height and clearance, while a carrier bearing spacer drops the driveshaft down to retain factory pinion angles.
High‑quality hardware and relocation brackets place brake lines in appropriate settings when necessary. Our phenomenal, long‑lasting Belltech components with the factory alignment system make installation easy. Take new roads and challenging terrain with Belltech’s complete Tacoma lift kit.
- Rear Trail Performance Twin Tube shocks
- 55mm shock bodies
- 35mm independent rebound and compression valves
- Rear lift blocks add 4" of height
- Strut spacers add 4" of lift in the front
- Retains factory alignment
- Retains OE suspension geometry
- Includes a differential drop‑down bracket
- Easy installation
- High‑quality hardware
- Improved ride quality
- Adds clearance
- Allows room for larger tyres and wheels
- ¼" thick skid plate protects differential
- Retains factory track width and turning radius
- High‑clearance, rigid crossmembers
