About this product

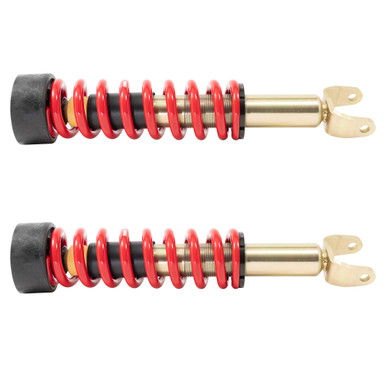

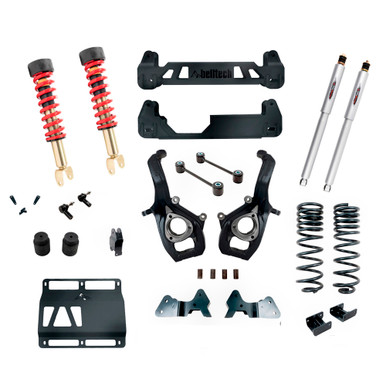

Belltech’s precision-engineered suspension lift kit for the 2019+ Ram 1500 2WD enhances ride quality, handling and durability while retaining factory alignment cams, track width and steering feel. The system integrates height-adjustable Trail Performance coilovers up front with Trail Performance twin-tube rear shocks.
Upgraded spindles reduce weight and increase strength while maintaining factory steering angle and ball joint geometry. A 1/4 inch laser-cut skid plate adds protection, with high-clearance crossmembers, stainless braided brake line extensions and outer tie rods completing the front-end package.
At the rear, a control arm drop bracket preserves wheelbase and centres the wheel in the arch, while progressive-rate coils, brake line relocation brackets, extended sway-bar links, tuned twin-tube shocks, bump stop extensions and a track bar relocation bracket improve stability and comfort.
The kit is a direct bolt-on solution using high-quality hardware, requiring minimal cutting and no welding, and is backed by a Limited Lifetime Warranty.
Tyre and wheel combinations
- 35×12.5 with 20×10 and −18 offset
- 35×12.5 with 20×10 and −19 offset
- 35×12.5 with 20×10 and −25 offset
- 35×12.5 with 20×9 and 0 to +1 offset
- 35×12.5 with 20×9 and −12 offset
- 35×12.5 with 22×10 and −18, −19 or −25 offset
