About this product
Belltech is excited to announce that we have extended our product line to include suspension lift kit systems for the 2019–2024 RAM 1500 2WD. Precision engineered in the US, this suspension lift kit system is designed to deliver the best ride on the market.

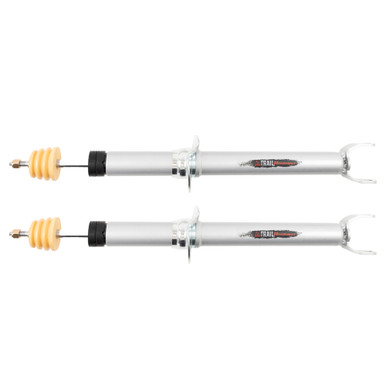

Belltech's precisely engineered lift kits include our patented front height‑adjustable Trail Performance struts and rear Trail Performance Twin Tube shocks. The front Trail Performance struts are customisable in ½" increments allowing you to dial in the perfect ride height for you. These lift kits improve ride quality, preserve factory alignment cams and specifications, retain the factory track width, and most importantly, do not induce bump steer.

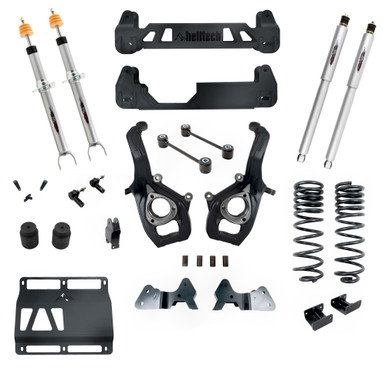

The front end includes replacement spindles, purposely engineered to improve strength and amplify durability. Belltech lift kits retain factory turning radius because they are engineered to maintain the original steering angle. The kits contain a ¼" thick laser‑cut skid plate to protect your front differential when tackling off‑road terrain. We also include durable outer tie rods, so there is no cutting involved in the front end. These are easy to install, and since the Belltech spindles keep the ball joint angles within spec, no replacement ball joints are needed. Rounding out the front end are our ¼" thick high‑clearance crossmembers, sway bar drop‑down brackets, front stainless steel braided brake line extensions, and a billet aluminium driveshaft spacer.
Our Belltech engineers have developed a rear control arm drop‑down bracket. Typically, when you lift this RAM, the rear control arms get shorter, which pulls the rear wheels forward so they are not centred in the wheel well, shortening the wheelbase. Our rear control arm drop‑down bracket maintains OE "anti‑squat" and all OE rear axle and suspension dynamics while driving, resulting in a safe‑feeling, enhanced ride quality that leaves you more confident in the driver's seat. Also included for the rear are replacement progressive‑rate coil springs, brake line relocation brackets, rear Belltech twin‑tube custom‑tuned Trail Performance shocks, rear bump stop extensions, and a track bar relocation bracket to centre the axle, preventing swaying and rolling while turning.
Belltech lift kits are an easy‑to‑install, direct bolt‑on solution using high‑quality hardware that requires minimal cutting and no welding. Our Belltech Suspension Lift Kits also feature a Limited Lifetime Warranty.
- Precision designed and engineered in the USA
- Includes custom engineered front height‑adjustable Trail Performance struts and rear Trail Performance twin‑tube shocks
- Retains factory alignment specifications using factory cams
- Maintains OE front differential geometry, CV angles, and factory track width
- Easy to install and align
- Replacement spindles to improve strength, reduce weight, and improve durability
- Maintains factory turning radius
- Can use OE wheels and tyres
- ¼" thick steel bracketry
- Heavy‑duty, high‑quality hardware
- Easy installation — minimal cutting, no welding needed, direct bolt‑on kit
- High‑clearance crossmembers
