BELLTECH 152510TPS 5-7 INCH LIFT KIT | FRONT AND REAR TRAIL PERFORMANCE STRUTS/SHOCKS

About this product

Fits: 2021+ Ford F-150 4WD

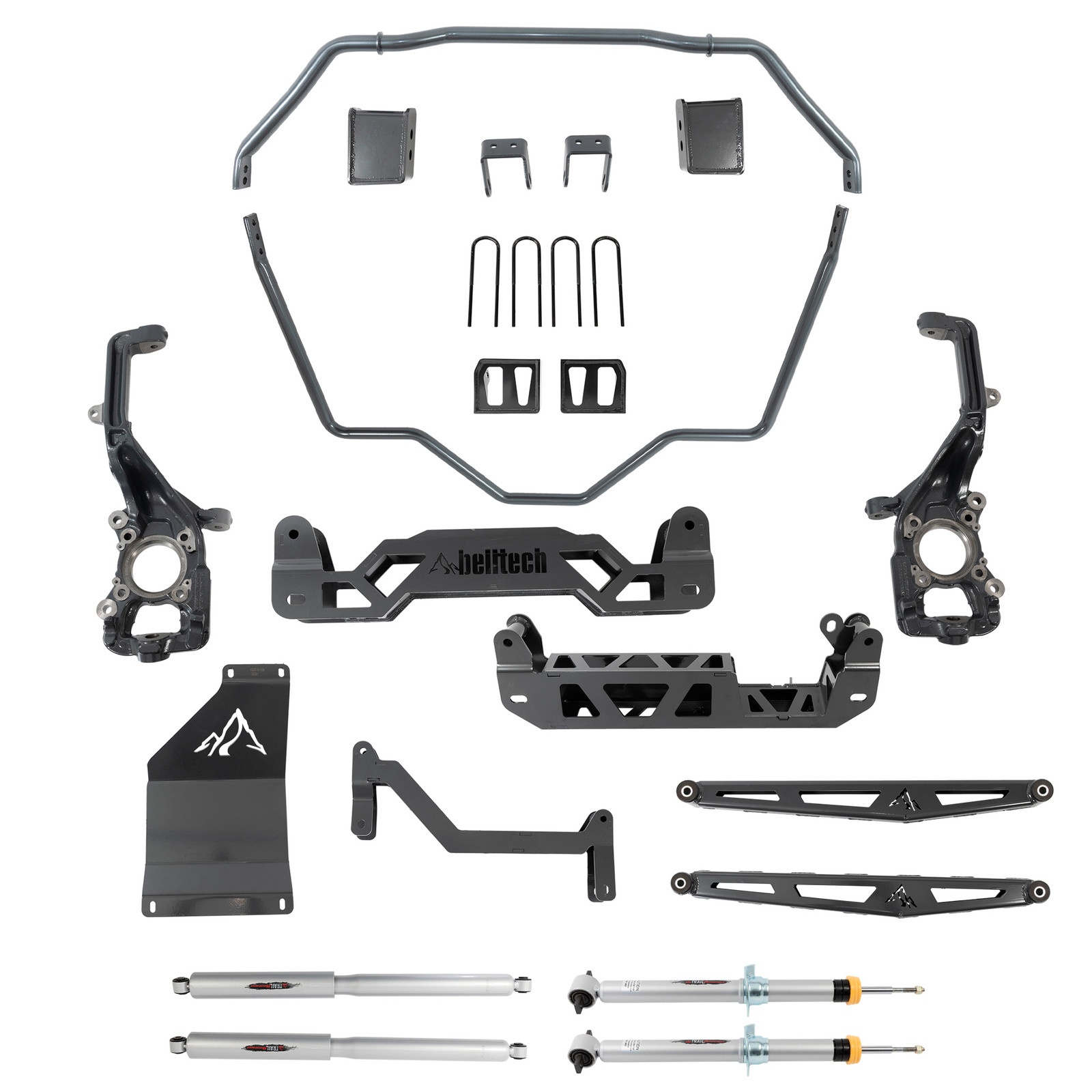

Belltech is excited to announce that we have extended our lift kit product line to include suspension lift kit systems for the new 2021+ Ford F-150. Our lift kits are engineered in the US and built to last. We offer the only 7" height-adjustable lift kit that does not require steering rack relocation, thanks to our innovative, progressive steering stop. Our kit also includes Belltech anti-sway bars, made of cold-formed steel and designed to be thicker than their OE counterparts, giving your truck increased stability and significantly reducing body roll. To keep the sway bars from overextending the end links or interfering with other parts, the kit also contains sway bar drop-down brackets.

Belltech's precisely engineered lift kits include our patented front height-adjustable coilovers and rear Trail Performance twin-tube shocks. The front coilovers allow you to customise your vehicle's height so you can dial in the perfect stance for you. The front coilovers and rear shocks have been completely redesigned for the new F-150 chassis with multiple improvements to enhance ride quality and handling performance. Beginning with our new multi-sleeve, vulcanised rubber bushings, we increased the durometer of the rubber and pressed in three metal sleeves with rubber between each sleeve to improve your ride quality. Our engineers were able to increase the damper forces because the new F-150 frame design can handle more low- and high-speed compression.

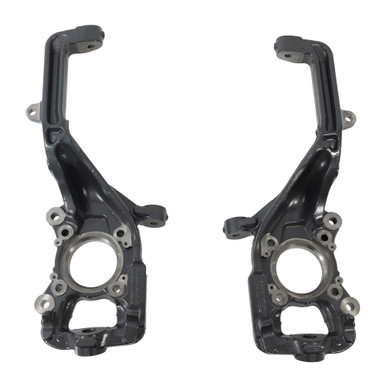

Belltech lift kits give you a superior feeling ride, retain factory alignment adjustment and specifications, preserve the factory track width, and do not induce bump steer. Our replacement spindles were purposely engineered to improve strength and reduce weight while advancing durability. Belltech lift kits require no sacrifice in turning ability as they were engineered to maintain the factory turning radius.

Also included in the kit is a 1/4" thick laser-cut skid plate to protect your ride's front differential. Rounding out the front end, we add a one-piece differential drop-down bracket that mimics OE factory alignment adjustability, plus 1/4" thick high-clearance crossmembers and brake line relocation brackets.

We also include heavy-duty, fabricated lift blocks and longer, more durable U-bolts to level the truck's stance. This portion of the design also re-centres the wheel in the wheel well and changes the pinion angle to help prevent driveshaft vibrations. Our Trail Performance rear shocks were specifically tuned for the new F-150 chassis and include our multi-sleeve, vulcanised rubber bushings. Belltech lift kits also include compression arms to increase chassis rigidity, which boosts ride quality and handling. Also included are rear bump stop spacers, rear brake line relocation brackets and heavy-duty, high-quality hardware.

• Precision Designed and Engineered in the USA
• Redesigned for the all-new 2021+ F-150 chassis
• Includes custom engineered front height adjustable coilovers and rear Trail Performance twin tube shocks
• Trail Performance shocks feature our all-new multi-sleeve, vulcanised rubber bushings
• Height adjustable for maximum customisation
• Retains factory alignment specifications
• Retains OEM CV angles and front differential geometry
• Easy to install and align
• Improved ride quality
• Maintains factory turning radius and track width
• Anti-sway bars and sway bar relocation brackets
