About this product
Fits: 2019+ Ram 1500
-1" to -3" front and -3" or -4" rear (2WD)
-1" to -4" front and -3" or -4" rear (4WD)
Precision and performance are the objectives for the new line of Belltech 2019+ Ram 1500 lowering kits. Our kit lowers the front of your vehicle -1" to -3" on the 2WD application and -1" to -4" on the 4WD application. The rear is lowered -3" or -4" to improve appearance and deliver a lower centre of gravity, with exceptional ride quality.
The front suspension includes robust Belltech lowering coilovers designed using high-quality, multi-functional components built to last. Each coilover includes a finely tuned Belltech threaded damper with a large, 2.4" (60 mm) damper body and 35 mm independent rebound and compression valves to keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customisable height adjustability. A large main spring and smaller helper spring are made of cold-formed tensile steel and powder-coated to prevent rust and wear. The coilover uses a progressive-rate polymer, open-cell bump stop and the OE top mounts for simplified installation.

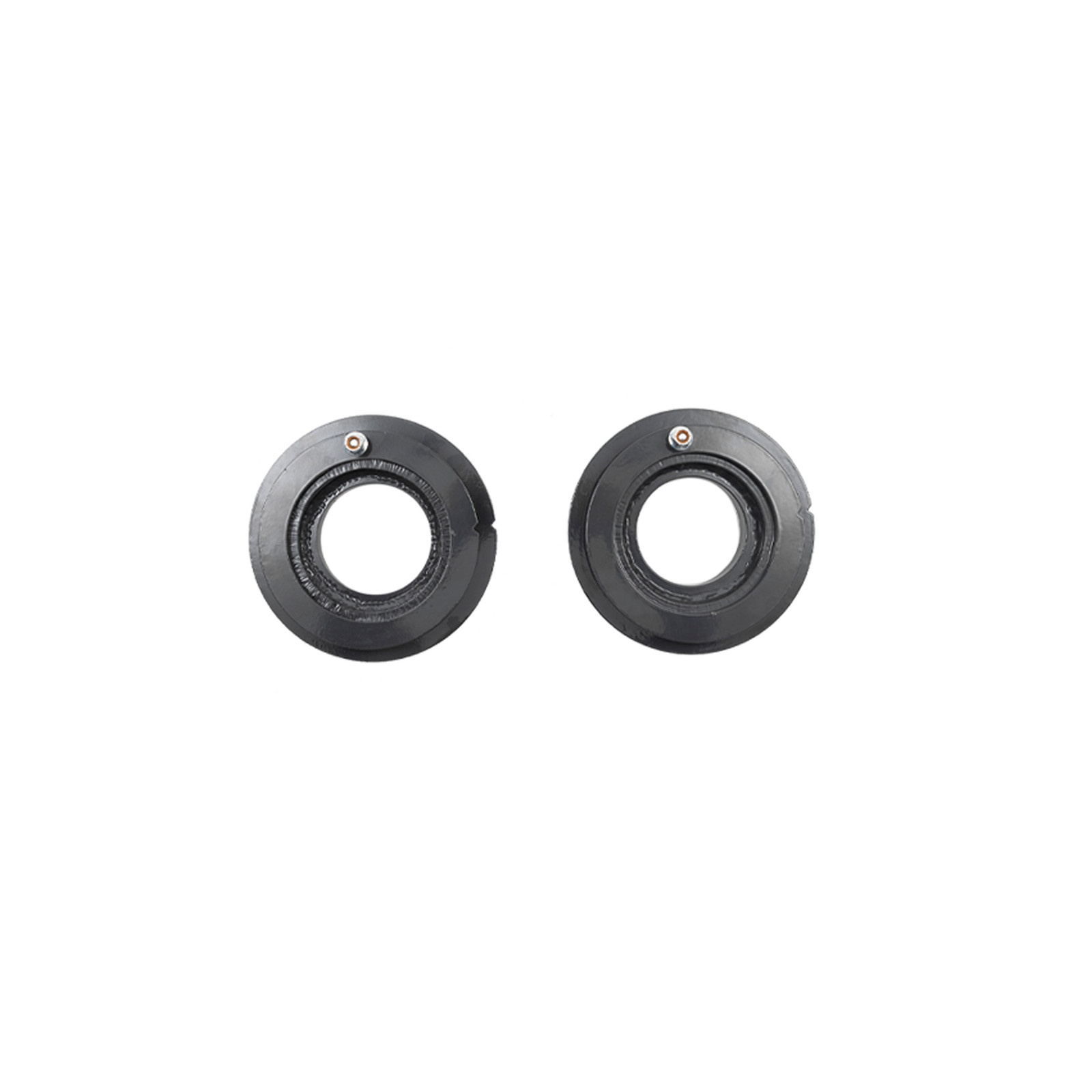

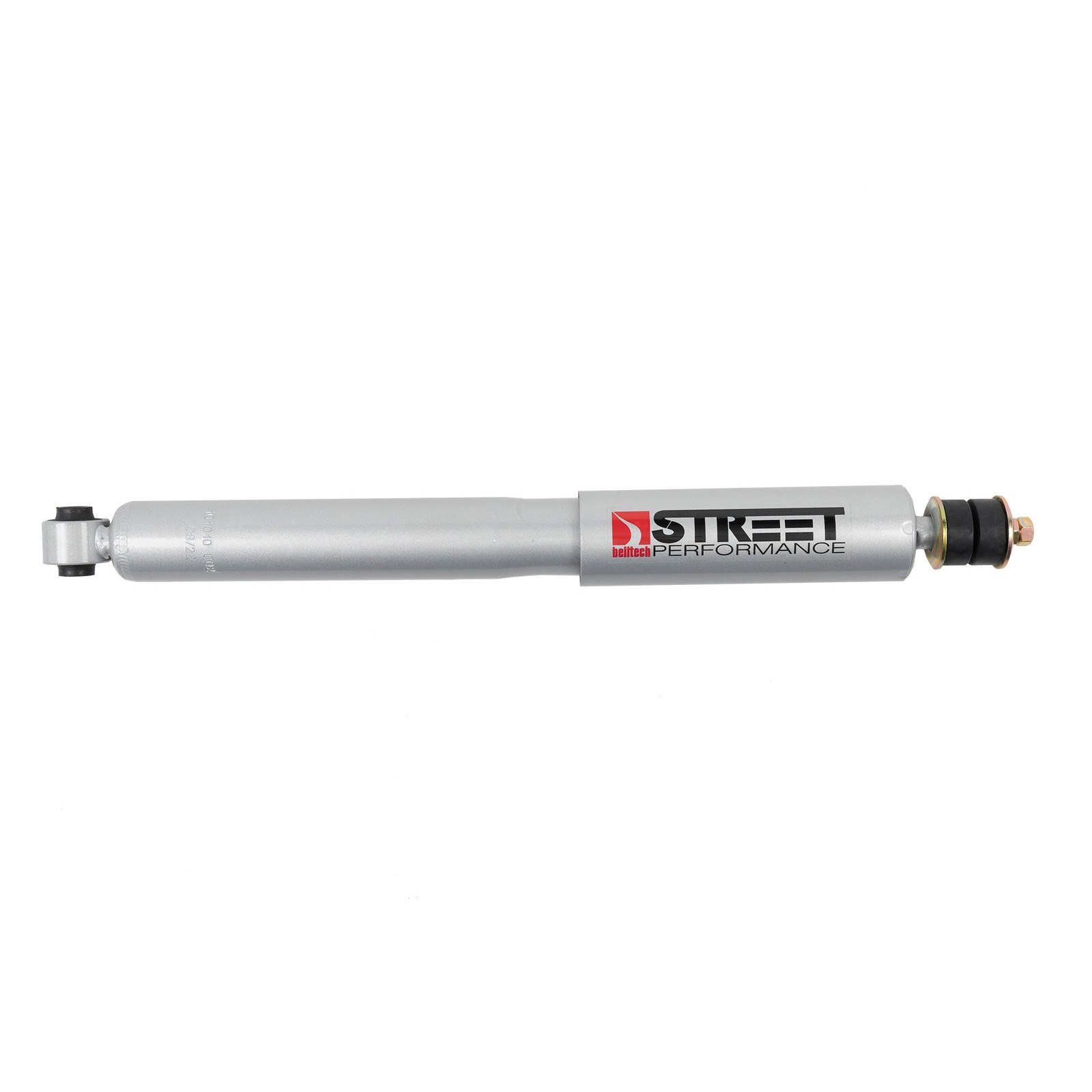

The rear showcases Belltech Street Performance shocks tuned for the Ram 1500. They use large 2.2" (55 mm) damper bodies and 35 mm independent rebound and compression valves for more exact, refined damping. To achieve -3" or -4" of lowering, the kit includes replacement coil springs and 1" spacers (remove the spacer for a full -4"). Steel spacers are powder-coated for durability. A roll-centre correction bracket keeps the axle centred under the vehicle, and adjustable end links preserve anti-sway bar angles. We also include a progressive-rate polymer, open-cell bump stop.
Belltech’s 2019+ Ram 1500 complete lowering kit delivers an eye-catching stance and extraordinary performance with straightforward installation and quality components.
- Customisable front lowering adjustability of -1" to -3" (2WD) and -1" to -4" (4WD)
- Customisable rear lowering options of -3" or -4"
- Large-bodied 2.4" (60 mm) preset front Street Performance dampers
- Large-bodied 2.2" (55 mm) preset rear Street Performance shocks
- 35 mm independent rebound and compression valves
- Steel, powder-coated spring spacers
- Adjustable-length heim joint end links
- Lowers centre of gravity
- Preserves OE ride quality and suspension geometry
- Easy to install
- Engineered to exemplify ride quality and performance
