About this product
Fits: 2019+ Ram 1500
-1" to -3" front and -3" or -4" rear (2WD)
-1" to -4" front and -3" or -4" rear (4WD)
Precision and performance are the objectives for the new line of Belltech 2019+ Ram 1500 lowering kits. Our kit lowers the front of your vehicle -1" to -3" on the 2WD application and -1" to -4" on the 4WD application. The rear is lowered -3" or -4" to improve appearance and deliver a lower centre of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.
The front suspension includes robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech threaded damper with a large, 2.4" (60 mm) damper body and 35 mm independent rebound and compression valves to keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customisable height adjustability. We feature a large main spring and a smaller helper spring, both made of cold-formed tensile steel and powder-coated to prevent rust and wear. The coilover uses a progressive-rate polymer, open-cell bump stop for ideal bump stop engagement and the OE top mounts for simplified installation.

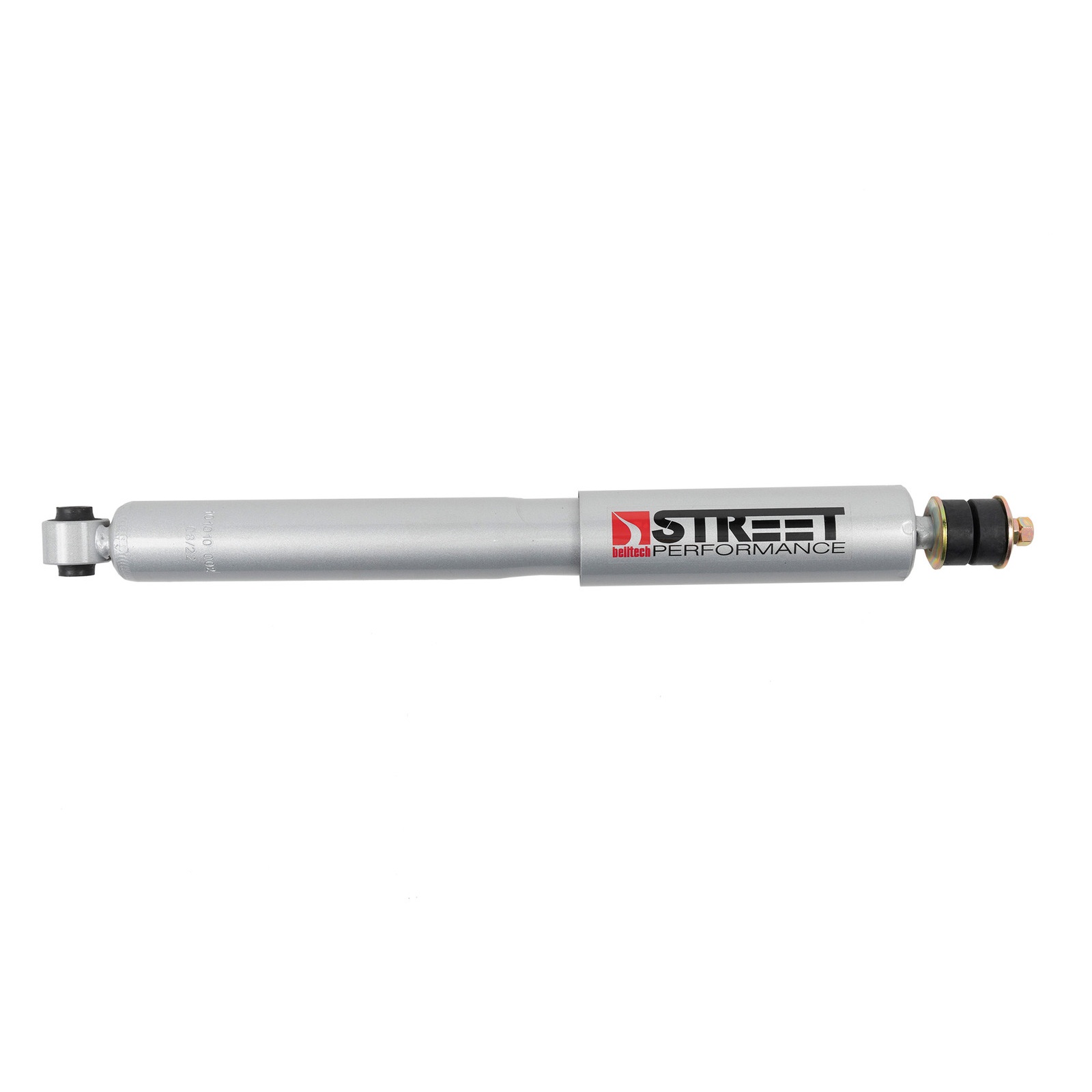

The rear of the vehicle showcases Belltech Street Performance shocks perfectly tuned for your Ram. They feature large 2.2" (55 mm) damper bodies and 35 mm independent rebound and compression valves for more exact, refined damping. To achieve -3" or -4" in lowering, the kit includes replacement coil springs and 1" spacers; to gain a full -4", remove the spacer. Belltech springs are made of cold-formed steel and powder-coated to prevent rust and wear. Spacers are constructed of solid steel and powder-coated for durability. A roll-centre correction bracket keeps the axle centred under the vehicle to maintain proper suspension geometry. To preserve correct anti-sway bar angles, the kit includes an adjustable end link assembly. To accommodate the new ride height, we also include a progressive-rate polymer, open-cell bump stop. For lateral control we include a 1-3/8" diameter solid front sway bar and 13/16" diameter hollow rear sway bar made of cold-formed steel and powder-coated for longevity. The bars feature two settings of adjustability to meet your specific performance needs.
Belltech’s 2019+ Ram 1500 complete lowering kit gives your truck an eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.
- Customisable front lowering adjustability of -1" to -3" (2WD) and -1" to -4" (4WD)
- Customisable rear lowering options of -3" or -4"
- Large-bodied 2.4" (60 mm) preset front Street Performance dampers
- Large-bodied 2.2" (55 mm) preset rear Street Performance shocks
- 35 mm independent rebound and compression valves

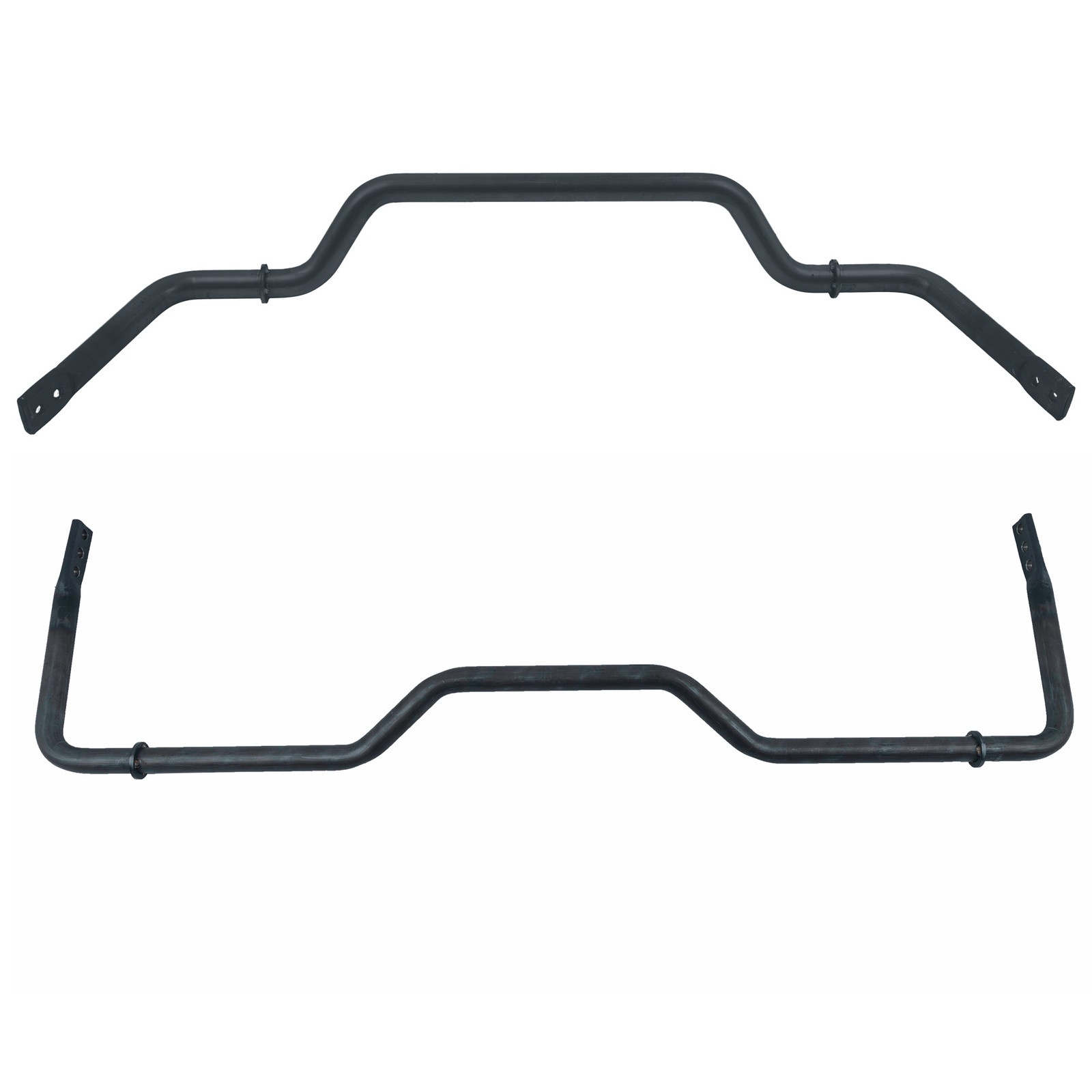

- 1-3/8" diameter solid front sway bar and 13/16" diameter hollow rear sway bar
- Adjustable-length heim joint end links
- Lowers centre of gravity
- Preserves OE ride quality and suspension geometry
- Engineered to exemplify ride quality and performance
