BELLTECH 1035HK PERFORMANCE HANDLING KIT W/ HEIGHT ADJUSTABLE COILOVERS & SWAYBAR SET

1035HK
Belltech

Stock: Backorder Available

AU$POA

Description

Description

About this product

Part Number: 1035HK

Discover a new level of performance with the latest line of Belltech 2021+ GM SUV lowering kits. Our kit lowers the front of your vehicle 0 to -2 inches and -1 to -2.5 inches at the rear for an excellent stance and a lower centre of gravity. We go well beyond looks and deliver the ride quality you have been dreaming of.

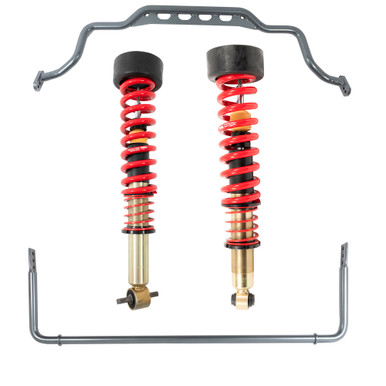

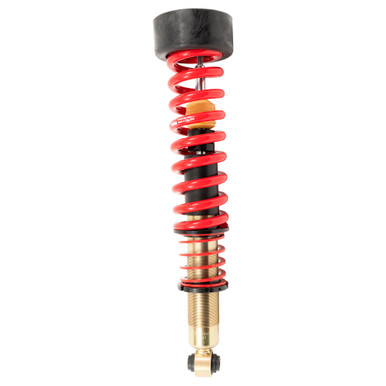

The front and rear suspension includes our robust Belltech lowering coilovers designed using high-quality, multi-functional components that are built to last. Each coilover includes a finely tuned Belltech damper that features a large 2.4 inch (60 mm) damper body and 35 mm independent rebound and compression valves. Together, these details keep oil cool and deliver precise, consistent damping throughout travel. The external threads and spring perch offer customisable height adjustability. We feature a large main spring and smaller helper spring. Both the main spring and the helper spring are made of cold-formed tensile steel and are powder-coated to prevent rust and wear. The coilover uses a progressive rate polymer, open-cell bump stop for ideal bump stop engagement, and the OE top mounts for simplified installation.

For lateral control we include a 1-3/8 inch diameter solid front sway bar and 1-1/4 inch diameter solid rear sway bar that are made of cold-formed steel and powder-coated for longevity. The front bar features two settings of adjustability and the rear has three settings to meet your specific performance needs.

Belltech’s 2021+ GM SUV complete lowering kit brings out the best in your ride with an eye-catching appearance and extraordinary performance. Easy installation plus quality components result in a refined ride for years to come.

  • Customisable front lowering options of 0 to -2 inches
  • Customisable rear lowering options of -1 to -2.5 inches
  • Large-bodied 2.4 inch (60 mm) preset Street Performance dampers
  • 35 mm independent rebound and compression valves
  • Cold-formed steel springs
  • Replaces your OE bars to improve handling
  • Reduces body-roll and aids in towing
  • Lowers centre of gravity
  • Preserves OE ride quality and suspension geometry
  • Easy to install
  • Engineered to exemplify ride quality and performance

Fitment

Fitment

YearMakeModelSubmodelDrive TypeEngineFuel TypeBody TypeNotes
2021 - 2025ChevroletSuburbanLS4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanLSRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanLT4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanLTRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanPremier4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletSuburbanPremier4WD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanPremierRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletSuburbanPremierRWD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanRST4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletSuburbanRST4WD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanRSTRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletSuburbanRSTRWD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2025ChevroletSuburbanZ714WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2022 - 2025ChevroletSuburbanZ714WD6.2LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukon XLSLE4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukon XLSLERWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukon XLSLT4WD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"
2021 - 2024GMCYukon XLSLTRWD5.3LGASSport UtilityBQ: Will not work with mag ride vehicles.
CD: Rear UCA part number 25122 is required when lowering more than 2" in the rear.
Lowering Rate: F: 0.5-2.0" / R: 1.0-2.5"

Media

Media

Front Coilover Kit: PDF
Rear Coilover Kit: PDF
Front Anti-Swaybar: PDF
Rear Anti-Swaybar: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Does not fit vehicles equipped with ARC or Magnetic Ride (Mag Ride) shocks.
  • Will not work with Mag Ride vehicles (per fitment note BQ).
  • Rear UCA part number 25122 is required when lowering more than 2 inches in the rear (per fitment note CD).
