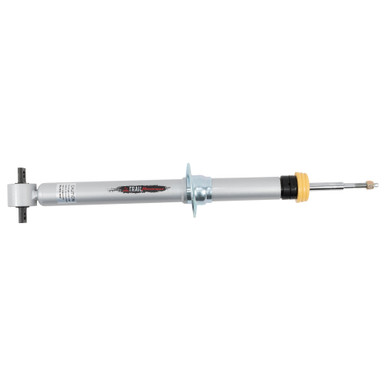

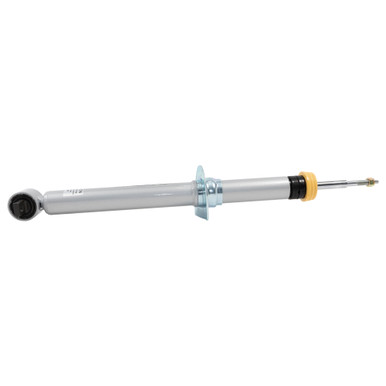

BELLTECH 28027 TP LIFT STRUT | 5-7 INCH

28027
Belltech

Stock: Backorder Available

AU$POA

Description

Description

About this product

Reach new heights with Belltech’s Trail Performance struts, designed to lift the front end of your Ford F‑150 4WD while working seamlessly with the OE springs for ideal handling and suspension performance. Because they utilise the OE springs, installation is straightforward.

Each strut features a patented height‑adjustable ring design allowing simple height customisation from 5 to 7 inches in half‑inch increments. Large 50 mm damper bodies with 35 mm independent rebound and compression valves deliver consistent, even damping on rough or rocky trails.

The 28027 strut is tuned with perfected preset damping specific to your Ford. A progressive‑rate polymer, open‑cell bump stop and packers refine bump‑stop engagement, while a high‑durometer vulcanised rubber bushing reduces vibrations and unwanted suspension noise.

For strength and longevity, the strut body is powder‑coated steel with a hardened 18 mm chrome piston rod. Beyond improving ride quality, the added lift provides room for larger wheels and tyres.

  • Height adjustable +5" to +7"
  • Increases clearance
  • Allows room for larger tyres/wheels
  • Reduces body roll
  • Enhances drive quality
  • Perfected and preset damping forces
  • Progressive‑rate polymer, open‑cell bump stop
  • Packers to adjust bump‑stop engagement
  • Large 50 mm damper body
  • 35 mm independent rebound and compression valves
  • 18 mm hardened chrome piston rod
  • High‑durometer vulcanised rubber bushing

Fitment

Fitment

YearMakeModelSubmodelDrive TypeEngineFuel TypeBody TypeNotes
2021 - 2025FordF-150King Ranch4WD3.5LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150King Ranch4WD5.0LFLEXCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150Lariat4WD2.7LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150Lariat4WD2.7LGASExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150Lariat4WD3.5LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150Lariat4WD3.5LGASExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150Lariat4WD5.0LFLEXCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150Lariat4WD5.0LFLEXExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150Limited4WD3.5LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150Platinum4WD3.5LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150Platinum4WD5.0LFLEXCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2024 - 2025FordF-150STX4WD2.7LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2024 - 2025FordF-150STX4WD2.7LGASExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2024 - 2025FordF-150STX4WD5.0LFLEXCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2024 - 2025FordF-150STX4WD5.0LFLEXExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD2.7LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD2.7LGASExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD2.7LGASStandard Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150XL4WD3.3LFLEXCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150XL4WD3.3LFLEXExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2023FordF-150XL4WD3.3LFLEXStandard Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD3.5LGASCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD3.5LGASExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD3.5LGASStandard Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD5.0LFLEXCrew Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"
2021 - 2025FordF-150XL4WD5.0LFLEXExtended Cab PickupF5: Part number 28027 is not designed to be installed with a strut spacer. | F7: Does not fit models equipped with Ford's Continuously Controlled Damping (CCD) | Lifting Rate: F: 5.0-7.0"

Media

Media

Lift Strut: PDF

Disclaimer

Disclaimer

Product Disclaimers:

  • Fitment: 2021+ Ford F‑150 4WD (all cabs).
  • Application: For vehicles already lifted 5–7 inches; the 28027 strut does not provide a complete lift on its own.
  • Compatibility: Designed to be used with Belltech lift kit 152510TP or 152510TPS.
  • Restrictions: Not designed to be installed with a strut spacer (F5). Does not fit models equipped with Ford’s Continuously Controlled Damping (CCD) (F7).
  • Lifting rate: Front 5.0–7.0 inches.
