About this product
Key specifications
- Maximum tyre diameter: 35"
- Recommended wheel backspacing: 5"
- Front lift height: 6.0"
- Rear lift height: 4.0"
Belltech is excited to announce an extended product line of suspension coilover lift kit systems for 2019–2025 GM Silverado/Sierra 1500 2WD/4WD trucks. Precision engineered in the USA, this suspension lift kit system delivers outstanding ride quality.

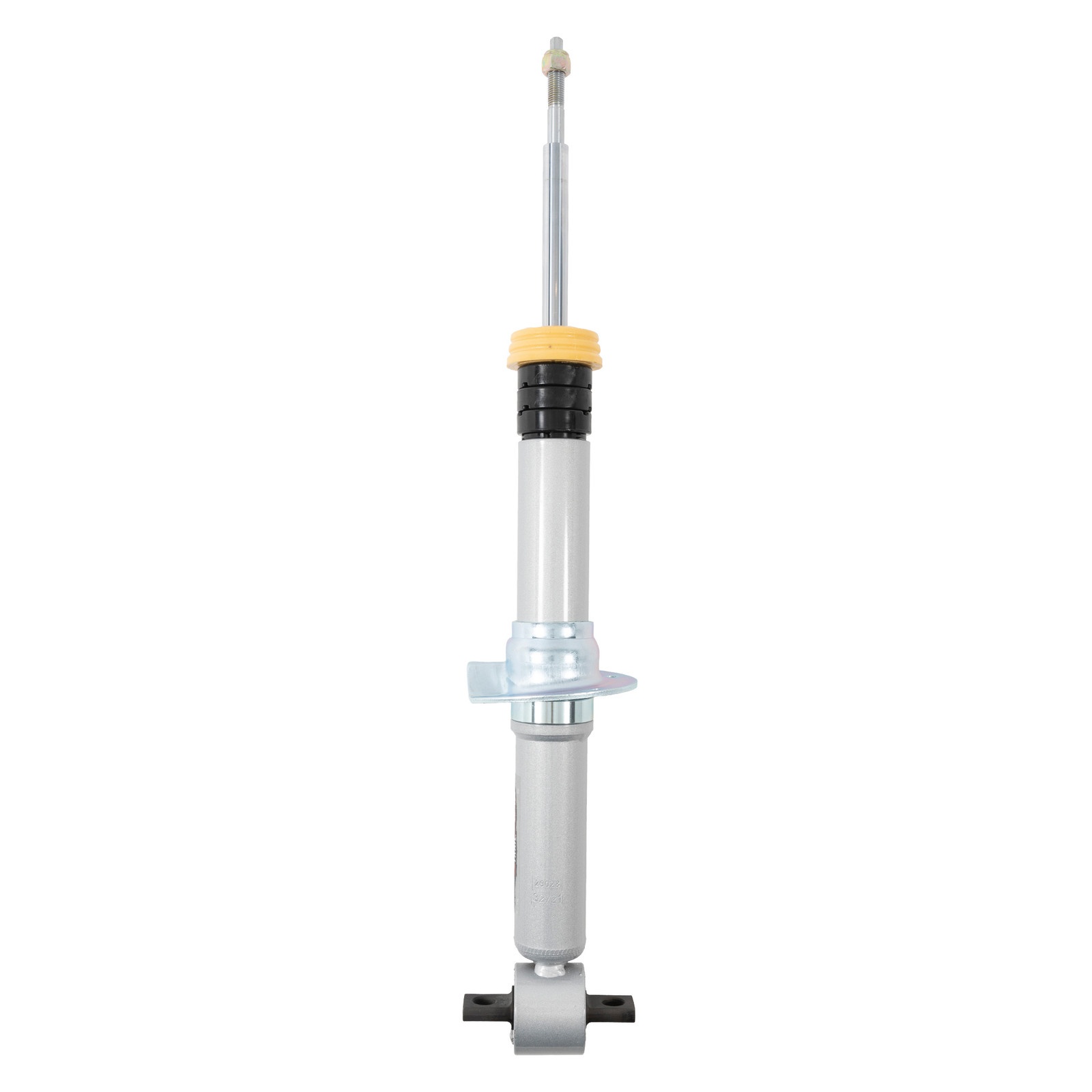

The kit includes easy-to-install strut spacers that mount over the OE strut. The front spacers provide a full 4" of lift and maintain proper travel without overextending the suspension. An additional 2" of lift is achieved with upgraded lift spindles purposely engineered to improve strength and reduce weight while enhancing durability. Steering lock-to-lock is maintained to retain factory turning radius. A 1/4" thick laser-cut skid plate helps protect driveline and steering components off-road.

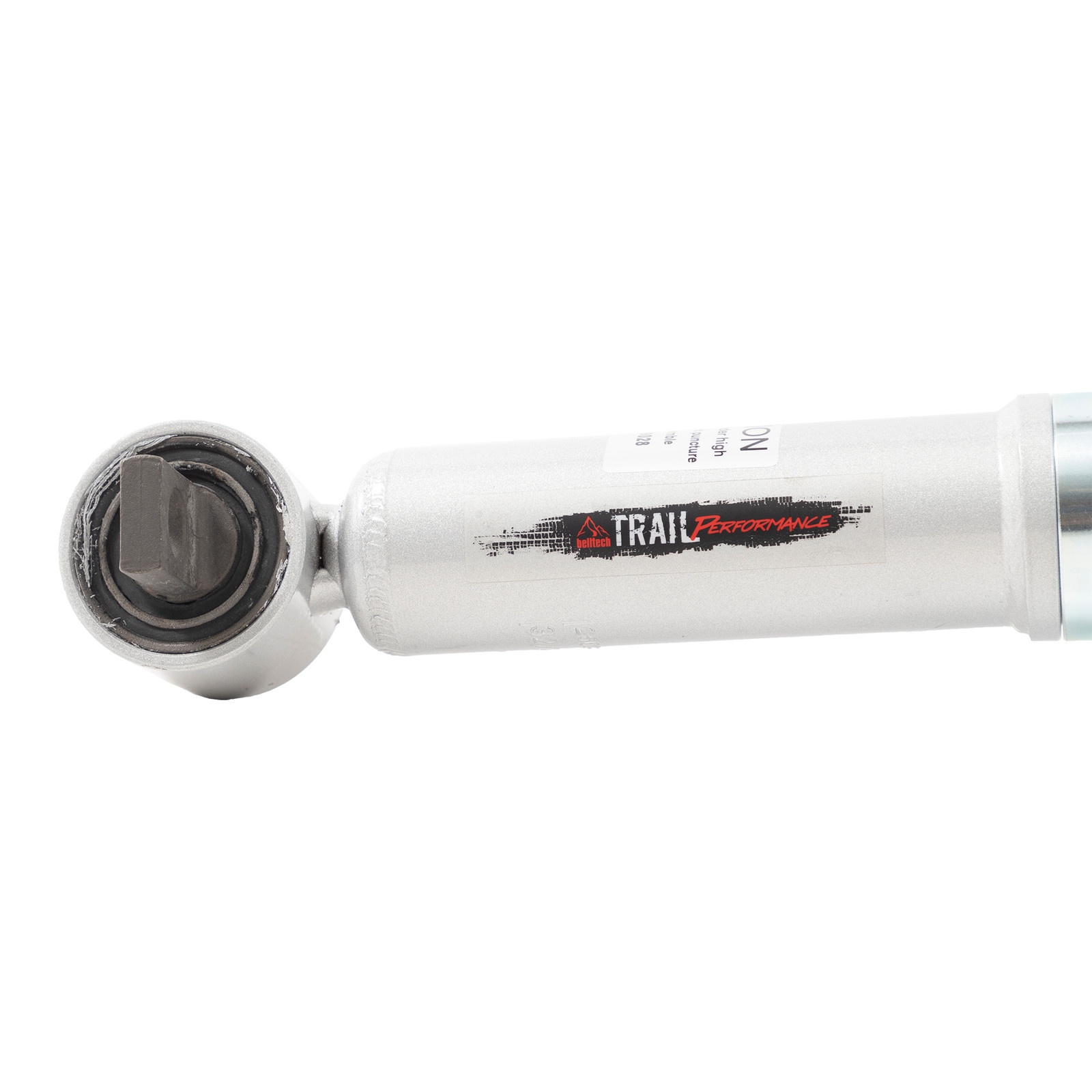

For the rear, the kit includes two vehicle-specific, precisely tuned preset Trail Performance lift shocks with large 2.2" (55 mm) damper bodies that increase oil volume for cooler, more consistent damping. Rear height is levelled using heavy-duty 1/4" steel lift blocks with extended U-bolts.
High-grade hardware and brake-line relocation brackets are included to keep lines safely clear of moving components. Belltech lift kits improve handling, add clearance, and allow the use of larger tyres and wheels. Each kit undergoes rigorous testing in extreme conditions.
Features
- Lift range: 6" front and 4" rear
- Easy-to-install front strut spacers
- Rear Trail Performance 2.2" (55 mm) shocks
- 35 mm independent rebound and compression valves
- Robust rear lift blocks with extended U-bolts
- Durable lift spindles
- Thick 1/4" steel brackets and crossmembers
- One-piece differential drop-down bracket
- Heavy-duty Grade 10 hardware
- Retains factory alignment specifications using factory cams
- Maintains OE front differential geometry
- Retains OEM CV angles
- Maintains factory turning radius
- Can use OE wheels and tyres
- Retains factory track width
- High-clearance crossmembers for superior obstacle clearance off-road
- Minimal cutting, no welding needed; direct bolt-on kit
- Limited Lifetime Warranty
